Color: Black +Yellow
Lead Time:
| Quantity(pieces) | 1-50 | >50 |
| Lead time(days) | 45 | To be negotiated |
Customization:
Customized logo(Min. order 50 pieces)
Customized packaging(Min. order 50 pieces)
Graphic customization(Min. order 50 pieces)
Shipping: Ocean freight
| Model No.: | TK-S90011 |
| Place of Origin | Xiamen, China |
| Application | EN957 |
| OEM | Accept |
| Warranty | 1 Year |
| Color | Black + Yellow |
|
Console |

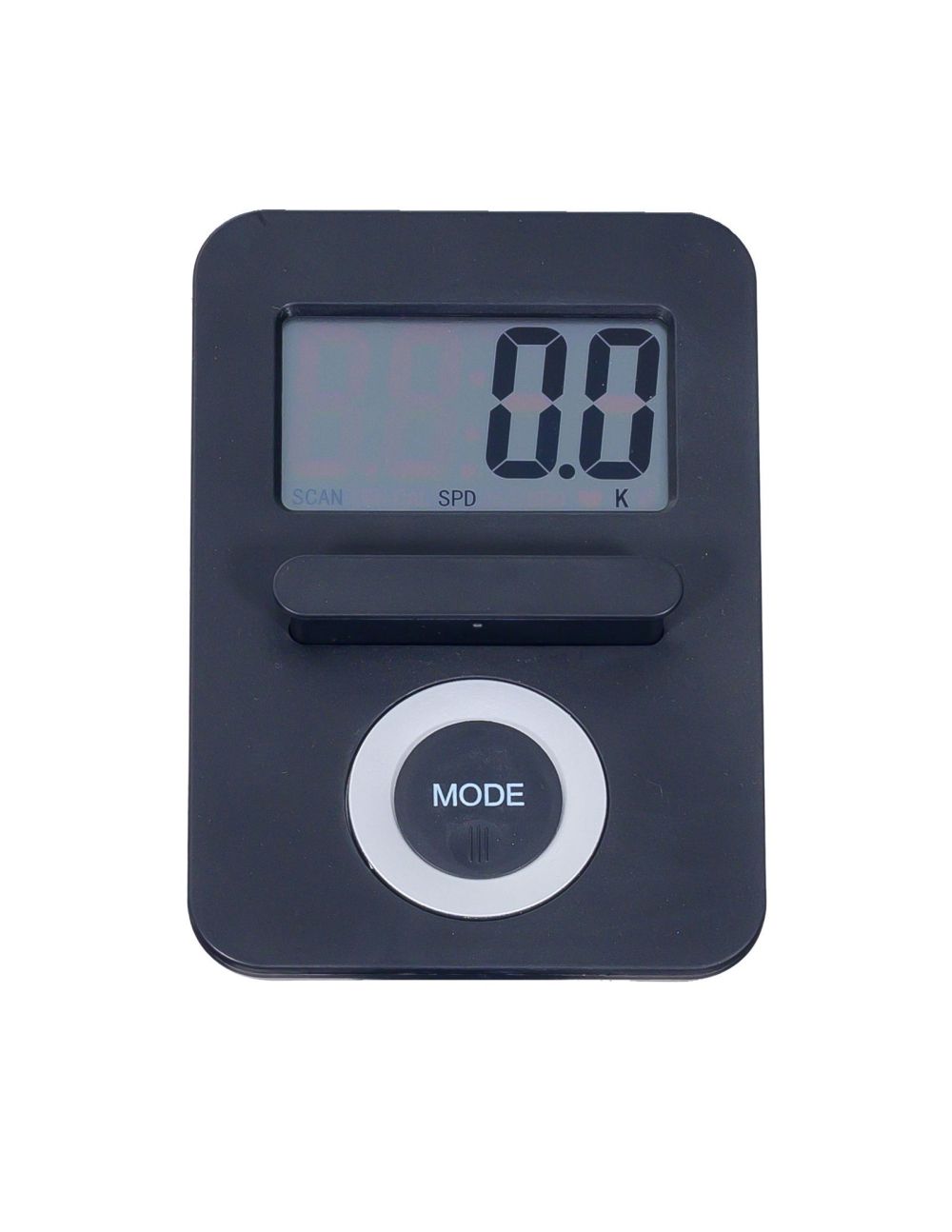

Display | LCD display - smartphone/tablet holder included |
| LCD size | 75x42mm | |
| Computer Functions: | Scan, Distance,Time,Speed,Calories | |
| Training Intensity | Manual- micrometric | |
| Device Holder | Yes, smartphone/tablet holder included | |
| Options | Built in wireless pulse receiver , compatible with standard 5.3Khz wearable heart rate detector. | |
| App ready:Built-in Bluetooth intelligent system which enables your bike to fully interact with the most motivating Apps specifically suitable for bike training. Compatible with Kinomap, Zwift, Fitshow (subscription not included) | ||
|
Engineering |
Flywheel Weight | 7KG flywheel with two ways |
| Braking System | Magnetic. Brake button for emergency stop | |
| Resistance adjustment | Manual- micrometric | |
| Drive System | Belt-fixed gear | |
| Seat position | Bicolour saddle with vertical adjustment and micrometric horizontal adjustment | |
| Handlerbar | Vertical adjustment | |
| Handlebar height | min 94.5 cm - max 100.5cm | |
| Saddle height | min 73 cm - max 88 cm | |
| Handlebar/saddle distance | min 43 cm - max 51.5 cm | |
| Q factor | Total:19.0 cm- left:9.5cm / RIght:9.5cm: | |
| Pedal crank: | 3 pieces | |

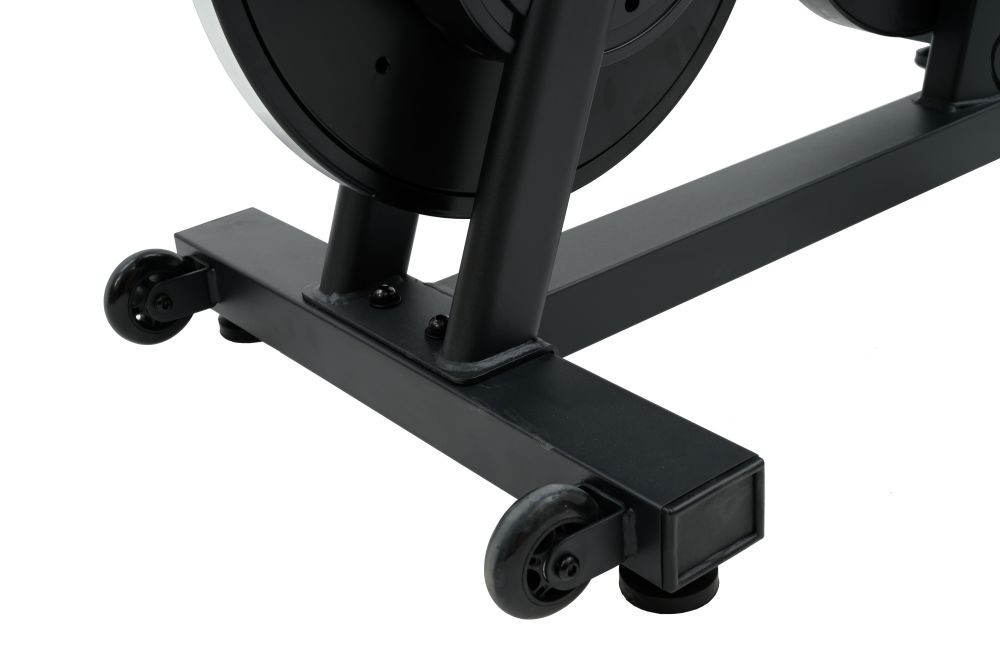

| Floor Stabilizers: | Yes | |
| Transportation Wheels | Yes | |
| Maximum user’s weight | 130 KGS | |
|
Packaging Information |
Set up size | 1160x505x1320 mm |
| Product Weight | 38.5 kgs | |
| Packing size | 1060x225x1020 mm | |
| Ship Weight | 43.0 kgs | |
|
Container Loading Quantity |
Loading quantity 40’HQ | 118 pcs |
| Loading quantity 40’GP | 246 pcs | |
| Loading quantity 20’GP: | 265 pcs | |
|
Compliances |
CE-ROHS-EN957 | |
Fore & Aft Saddle position > From the seat anchor point to the minimum handlebar position
Handlebar height > From upper edge handlebar to bike support base(upper face)
Saddle height > To make sure you will be able to use this equipment properly you should measure the cm from your heel to your crotch, bearing in mind that your leg must never be fully extended during the training.
Handlebar position slide > Of the minimum and maximum position of the slide.
Application --- Designed for Semi-commercial use
