Introduction: Understanding Elliptical Drive Mechanism Differences
Elliptical trainers use two distinct drive configurations to translate pedal motion into flywheel rotation. Front-drive ellipticals position the flywheel and resistance mechanism ahead of the user, while rear-drive ellipticals place these components behind the user. This difference in drivetrain layout produces measurable variations in stride arc, frame length, stability profile, and user experience.
The drive position determines how the pedal connects to the flywheel through a series of linkages or belts. In front-drive models, the forward flywheel creates a leverage system that pulls the pedals in front of the user. Rear-drive models use cables or belt assemblies that extend from behind, producing a different stride feel.
According to the American College of Sports Medicine, elliptical training produces ground reaction forces of 1.2 to 1.5 times body weight, regardless of drive configuration. Both designs provide the low-impact cardiovascular conditioning that makes elliptical trainers popular for joint-friendly exercise. The choice between them depends on specific mechanical and spatial priorities.
Front Drive Elliptical: Mechanical Layout and Stride Characteristics
Front-drive elliptical trainers position the flywheel at the forward end of the frame, connected to the pedals through a drive mechanism that typically uses belt or linkage systems. The forward flywheel location creates a distinct pedal trajectory that slopes upward as the user steps forward. This angled stride path produces a climbing sensation that some users find more natural than rear-drive alternatives.
The horizontal distance between pedal center and flywheel on front-drive models ranges from 15 to 20 inches, creating a shorter overall frame length compared to rear-drive designs. Front-drive ellipticals typically measure 5.5 to 6.5 feet in length, making them the more space-efficient choice for home gym environments. The compact footprint is advantageous for users working with limited floor area.
Step-up height on front-drive ellipticals ranges from 7 to 10 inches, lower than rear-drive models. This reduced climbing height makes mounting and dismounting easier for users with balance limitations or reduced hip mobility. The lower platform also reduces the fall distance if balance is lost during exercise entry or exit.
Front-drive designs feature shorter crank arms, typically 14 to 16 inches. The shorter crank arm combined with the forward flywheel produces a stride length of 16 to 19 inches, which accommodates users up to approximately 5 feet 10 inches. Taller users may feel restricted by the stride limitation, as the forward position of the crank creates a circular path with reduced hip extension.
Rear Drive Elliptical: Stability Profile and Natural Stride Motion
Rear-drive elliptical trainers position the flywheel behind the user, with the drive mechanism extending forward to connect with the pedals at a mid-point under the user. This configuration creates a longer frame that extends 6.5 to 8 feet in total length. The extended chassis provides a more horizontal pedal path and increased stability during high-intensity exercise.
The stride arc of rear-drive ellipticals closely approximates the natural biomechanics of walking or running. The pedals follow a path that is flatter at the bottom of the stroke, with the flywheel located behind pulling the pedals in a more horizontal plane. Users consistently report that the rear-drive stride feels more natural and requires less adaptation period when transitioning from walking or running programs.
Rear-drive ellipticals accommodate longer stride lengths, typically 18 to 22 inches. The extended crank arm and rear flywheel position allow greater hip extension at the rear of the stride cycle. This biomechanical advantage makes rear-drive configurations the preferred choice for users taller than 5 feet 10 inches or those seeking greater range of motion during exercise.
The longer frame of rear-drive ellipticals can be a drawback in tight spaces. Users with less than 7 feet of room length may find rear-drive models difficult to fit without compromising clearance. The rear flywheel also creates the need for a more substantial frame to support the longer lever arm, resulting in higher overall machine weight—typically 180 to 220 pounds versus 140 to 170 pounds for comparable front-drive models.
Elliptical Drive Comparison: Front Drive vs Rear Drive
The table below summarizes the key differences between the two elliptical drive configurations:
|
Feature |
Front Drive |
Rear Drive |
| Total Frame Length | 5.5 – 6.5 ft | 6.5 – 8.0 ft |
| Stride Length | 16 – 19 inches | 18 – 22 inches |
| Step-Up Height | 7 – 10 inches (lower) | 9 – 13 inches (higher) |
| Stride Angle | Angled upward (climbing feel) | Flatter (walking feel) |
| Machine Weight | 140 – 170 lbs | 180 – 220 lbs |
| Best Height Range | 5'0" – 5'10" | 5'4" – 6'4" |
Source: American Council on Exercise Equipment Research, 2024
Stride Quality and User Comfort Differences

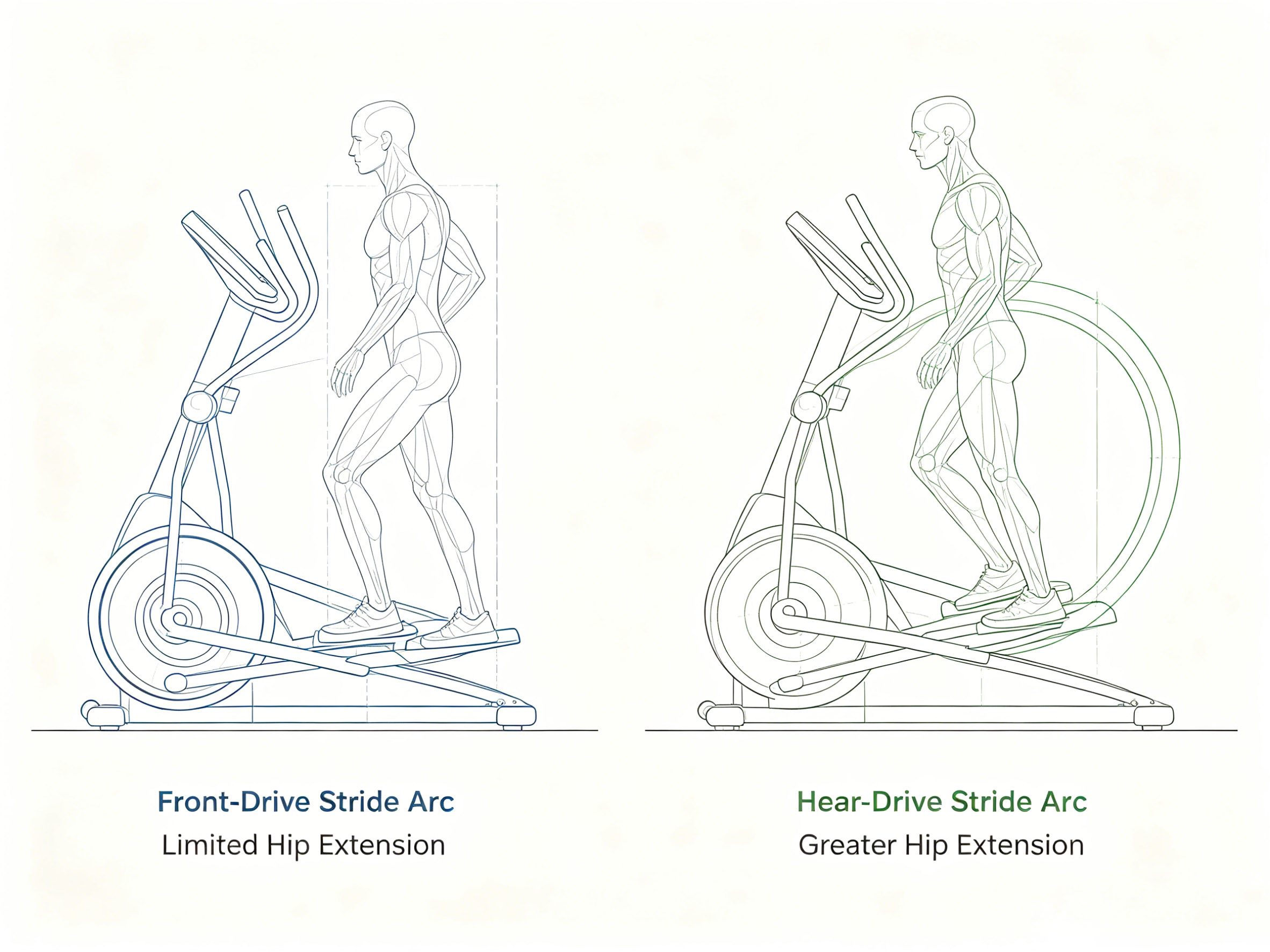

The stride quality difference between front-drive and rear-drive ellipticals stems from the position of the crank center relative to the user. On front-drive machines, the crank is located ahead of the user, causing the pedals to arc upward and forward. This motion pattern creates a climbing feel that engages the quadriceps and hip flexors more heavily during each stride.
Rear-drive ellipticals position the crank at or slightly behind the user, producing a pedal path that moves rearward and downward at the beginning of the power stroke. This creates a pushing motion closer to walking mechanics, with more distributed recruitment across the quadriceps, hamstrings, and gluteal muscles.
Heel lift during the stride cycle differs between configurations. Front-drive ellipticals tend to produce higher heel elevation at the rear of the stride due to the angled pedal path. Rear-drive models maintain a flatter foot position throughout the cycle, which users with Achilles tendon sensitivity or plantar fasciitis may prefer.
Resistance Systems and Training Consistency Across Designs
Both front-drive and rear-drive ellipticals use magnetic or eddy current resistance systems with comparable performance characteristics. The resistance mechanism functions independently of the drive position. Magnetic braking on both configurations provides quiet, smooth resistance with 8 to 25 adjustable levels depending on the model.
Resistance consistency varies slightly between configurations because of linkage geometry. Front-drive machines with shorter crank arms may produce slightly higher resistance at the top and bottom of the stroke due to the mechanical disadvantage at these positions. Rear-drive models with longer crank arms maintain more consistent resistance throughout the full 360-degree pedaling rotation.
Flywheel weight follows manufacturer preferences rather than drive configuration patterns. Heavier flywheels, typically 20 to 30 pounds, provide smoother pedal motion and more consistent momentum carryover between strokes. Flywheel weight should be evaluated independently of drive position when selecting an elliptical trainer.
Home Space Planning for Elliptical Machine Placement
The floor space required for any elliptical trainer includes both the machine footprint and clearance zones for safe operation. Front-drive ellipticals require approximately 7 feet by 2.5 feet of operational space. Rear-drive models need 8.5 to 9 feet by 2.5 feet when accounting for the extended frame and natural leg extension on both sides.
Ceiling height considerations apply to both configurations equally. Users exercising on elliptical trainers maintain a standing position throughout the workout, requiring 6.5 to 7 feet of clearance regardless of drive type. The lack of overhead arm motion—unlike rowing machines—makes ellipticals suitable for basements or rooms with lower ceilings.
Transport wheels on both front-drive and rear-drive ellipticals facilitate repositioning for cleaning or storage. However, the heavier frame of rear-drive models makes repositioning more physically demanding. Users who frequently need to move their elliptical for room reconfiguration should weigh this practical concern against stride quality preferences.
Caloric Expenditure and Cardiovascular Response
Both elliptical drive configurations produce equivalent cardiovascular benefits when matched for exercise intensity, duration, and user effort. According to Harvard Health Publishing, a 155-pound individual burns approximately 270 to 324 calories during 30 minutes of moderate elliptical exercise, regardless of whether the machine uses front or rear drive.
Heart rate response and oxygen consumption show no statistically significant differences between drive types at matched perceived exertion levels. The Centers for Disease Control and Prevention categorizes elliptical training as moderate-intensity activity at 3 to 5 metabolic equivalents when performed at standard resistance and cadence settings.
Upper body handle engagement increases caloric expenditure by 15 to 20 percent on both configurations. Moving handles increase total muscle mass recruitment and elevate heart rate more rapidly than lower-body-only elliptical movement.
Maintenance Requirements and Drive System Durability
Front-drive and rear-drive ellipticals share similar maintenance requirements for their magnetic resistance systems. The primary maintenance task for both configurations is periodic cleaning of the glide tracks or guide rails that direct pedal motion. Belt-driven systems on both designs require tension checks every 6 to 12 months.
Rear-drive ellipticals have longer belt or cable runs connecting the flywheel to the pedals. These extended drive systems experience more potential friction points than compact front-drive arrangements. Users should inspect belt alignment annually on rear-drive models to ensure smooth operation and prevent premature wear at pulley contact points.
Flywheel bearing maintenance follows manufacturer specifications and is independent of drive position. Sealed cartridge bearings on most home elliptical trainers require no lubrication for the life of the bearing, typically 8 to 12 years under normal residential use conditions.
Conclusion: Matching Drive Configuration to User Requirements
Front-drive ellipticals suit users who prioritize compact floor footprint, lower step-up height, and a climbing-oriented stride feel. The shorter frame fits more easily into limited home gym spaces, and the lower mounting height improves accessibility for users with balance concerns. Stride length limitations make front-drive configurations less suitable for taller users.
Rear-drive ellipticals serve users who value longer stride lengths, more natural walking or running biomechanics, and flatter foot positioning. The extended stride accommodates taller users and provides a smoother transition for individuals accustomed to treadmill or outdoor ambulation. The larger footprint requires careful space measurement before purchase.
Neither drive configuration demonstrates performance superiority for general fitness outcomes. Equipment selection should prioritize stride length compatibility with user height, floor space availability, and personal comfort during trial use.
Frequently Asked Questions About Elliptical Drive Configurations
What is the fundamental difference between front-drive and rear-drive ellipticals?
Front-drive ellipticals position the flywheel ahead of the user, creating a shorter frame and an upward-sloping stride path. Rear-drive models place the flywheel behind the user, producing a longer frame and a flatter, more horizontal stride that mimics natural walking biomechanics.
Which elliptical drive type is better for tall users above 6 feet?
Rear-drive ellipticals with stride lengths of 20 to 22 inches better accommodate users above 6 feet. The rear flywheel position allows greater hip extension throughout the stride cycle. Front-drive models typically cap stride length at 19 inches, which feels restricted for taller individuals during extended sessions.
Does drive configuration affect elliptical machine noise levels?
Noise levels depend primarily on resistance system quality and frame construction rather than drive position. Magnetic resistance systems on both configurations operate at 45 to 55 decibels. Longer belt runs on rear-drive models may introduce minor additional friction noise that disappears after the belt surface wears in.
Which configuration burns more calories during exercise?
Front-drive and rear-drive ellipticals produce equivalent caloric expenditure when users maintain the same heart rate and perceived exertion levels. A 155-pound individual burns 270 to 324 calories per 30-minute session on either configuration. Upper body handle usage increases calorie burn equally on both types.
Why do some users prefer the feel of front-drive ellipticals?
Some users prefer the climbing sensation of front-drive ellipticals because the upward stride angle creates a feeling of effort that feels productive. The shorter crank arm also produces faster pedal revolutions at equivalent stride rates, which some users find more engaging during workout sessions.
What maintenance differences exist between the two drive types?
Both configurations need similar maintenance for their magnetic resistance and glide systems. Rear-drive ellipticals require additional belt alignment checks due to longer drive cable runs. Front-drive machines have fewer moving parts in the drivetrain, reducing the number of potential wear points that require periodic inspection.
References and External Sources
1. American College of Sports Medicine — Exercise Guidelines and Elliptical Research
2. Harvard Health Publishing — Calorie Burn Rates for Exercise Equipment
3. Centers for Disease Control and Prevention — Physical Activity Intensity Classification
4. American Council on Exercise — Elliptical Training Research
